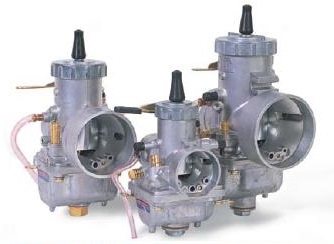

VM SERIES ROUND SLIDE CARBURETORS

VARIATIONS AVAILABLE:
“Left“ Idle Screw
“Right” Idle Screw
Snowmobile Single Carburetor


“Left“ Idle Screw Standard Jetting Specifications
Carb Main jet Pilot jet Needle jet Jet needle Throttle valve Air jet Needle valve set Float height Mikuni part Part number
VM16 N100.604 #70 VM22/210 #25 #165 D-8 #3DJ3 2.5 None VM15/172-1.8 25mm VM16-519 not available
VM18 4/042 #80 VM22/210 #30 #145 O-0 #4F18 VM18/158 1.0 None VM15/172-1.5 21mm VM18-144 001-001
VM20 4/042 #180 M28/1001 #22.5 #239 O-6 #4J13 VM20/491 2.0 0.5 Fixed VM15/172-1.5 21mm VM20-273 001-005
VM22 4/042 #100 VM22/210 #30 #257 N-8 #4D20 VM26/21 2.0 None VM26/26-2.0 25mm VM22-133 001-007
VM26 4/042 #190 VM22/210 #60 #182 N-8 #5F21 VM28/56 2.0 BS30/97 0.5 VM26/26-2.5 16mm VM26-8074 001-020
VM26 4/042 #19 M28/1001 #22.5 #332 0-0 #5E75 VM24/361 1.5 Fixed VM26/26-2.5 23mm VM26-606 001-021
VM28 4/042 #200 VM22/210 #60 #169 N8 #5F21 VM28/56 2.5 BS30/97 0.5 VM26/26-2.5 23mm VM28/49 001-022
VM30 4/042 #250 VM22/210 #40 #159 P-5 #6F5 VM34/110 2.5 BS30/97 2.0 VM34/39-3.3 23mm VM30-83 001-024
VM32 4/042 #200 VM22/210 #35 #159 Q-6 #6DP17 VM34/110 3.0 BS30/97 2.0 VM34/39-3.3 23mm VM32-33 001-028
VM34 4/042 #260 VM22/210 #35 #159 Q-2 #6DH4 VM34/110 2.5 BS30/97 2.0 VM34/39-3.3 23mm VM34-168 001-030
VM36 4/042 #310 VM22/210 #35 #159 Q-5 #6FJ6 VM36/36-2.5 BS30/97 2.0 VM34/39-3.3 18mm VM36-4 001-035
VM44 4/042 #310 VM22/210 #35 VM22/210 #35 #224 AA-5 #7F7 BS30/97 0.5 VM34/39-3.3 18mm VM44-3 001-048
“Right” Idle Screw Standard Jetting Specifications
Carb Main jet Pilot jet Needle jet Jet needle Throttle valve Air jet Needle valve set Float height Mikuni part Part number
VM24 4/042 #210 VM22/210 #40 #864 N-8 #5I14 1.5 None 786-15005-2.5   VM24-512 001-018
VM32 4/042 #200 VM22/210 #35 #159 Q-6 #6DP17 VM32/65 3.0 BS30/97 2.0 VM34/39-3.3 23mm VM32-193 001-051
VM34 4/042 #260 VM22/210 #35 #159 Q-2 #6DH4 VM32/65 2.5 BS30/97 2.0 VM34/39-3.3 23mm VM34-275 001-052
VM38 4/042 #330 VM22/210 #30 #159 Q-2 #6DP1 VM38/24 2.5 BS30/97 0.5 VM34/39-3.3 18mm VM38-9 001-040
Snowmobile Single Carburetor Standard Jetting Specifications
Carb Main jet Pilot jet Needle jet Jet needle Throttle valve Air jet Needle valve set Float height Mikuni part Part number
VM34 4/042 #330 VM22/210 #30 #159 Q-0 #6DH3 VM34/110 2.5 BS30/97 2.0 VM34/39-1.5 23mm VM34-39 001-029
VM38 4/042 #360 VM22/210 #40 #166 Q-0 #6DH3 VM38/24 2.5 2.5 Body VM28/163-1.5 23mm VM38-21 001-041
VM44 4/042 #540 VM22/210 #35 #224 AA-5 #7DH2 VM40/02 1.5 BS30/97 0.7 VM28/163-1.5 18mm VM44-7 001-047
For exploded view carb parts
VM SERIES Throttle valveS / SLIDES

90º Cable Adjuster Assembly

007-731 90º adjuster KIT has threads on one end, the other end swivels. Includes rubber cap, locknut, cable adjuster and 90º tube. Works on Keihin and Mikuni carburetor caps.

The KIT 007-731 contains:
002-061 rubber cap
002-065 nut
007-757 adjuster
007-759 90 degree threaded tube

002-064 45º adjuster

002-065 45º Cable Adjuster Locknut B30/247






002-370 45º Throttle Cable Rubber Cap VM22/18


For exploded view carb parts
